SHINKOH 14 PUSH

 โพสต์เมื่อ : 25 ธ.ค 2564 เวลา 7:41 น.
14p

HOIST SWITCH SBN 14
DescriptionRATE INSULATION,rate themalopeating temperature
SBN-1414 pushbutoon POLYCARBONATE      250V AC ,3A-5 C to 40 C
logo

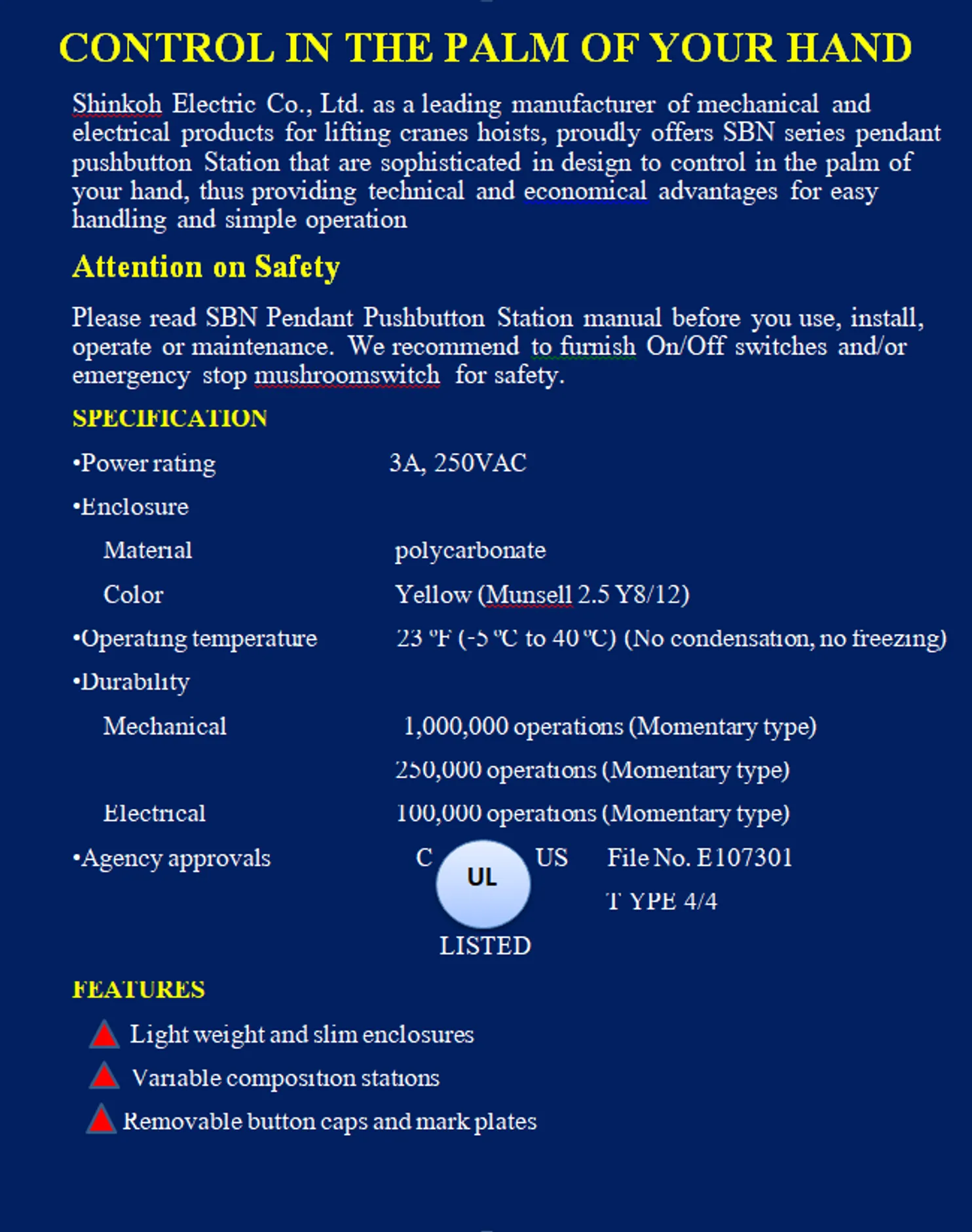

SHINKOH SBN PANDANT

CONTROL

Untitled2

ModelDescriptionCapacity
SBU-B-BMomentary On/Off3A, 250VAC
SBU-H2-BMaintained On/Off
SBU-H3-BMaintained On/Off (NO/NC)
SBU-A-BSingle Speed Switch
SBU-AB-BSingle Speed Switch (NO/NC per Button)
SBU-2A-BSingle Speed Switch (NO/NO per Button)
SBIU-2A2B-BSingle Speed Switch (NO+NO/NC+NC per Button)
SBU-S-BTwo Speed Switch
SBIU-T2-BThree Speed Switch
SBIU-A1-BMomentary Single Button
SBIU-AB1-BMomentary Single Button (NO/NC)
SBIU-KS2-B2-Position Key Switch
SBIU-KS4-B4-Position Key Switch
SBIU-L2-B2-Position Selector Switch
SBIU-L3-B3-Position Selector Switch (NC in Center Position)
SBIU-L3B-B3-Position Selector Switch (NO in Center Position)
SBIU-E-BMushroom Head Emergency Stop Device
SBU-BzS-BBuzzer Switch
PLH-120RRed Pilot Light120VAC
PLH-120GGreen Pilot Light
PLH-120YYellow (Orange) Pilot Light
PLH-120TTransparency Pilot Light




SBU-B-BSBU-B-B
Model: SBU-B-B




SBU-H2-BSBU-H2-BSBU-H3-BSBU-H3-B
Model: SBU-H2-BModel: SBU-H3-B




SBU-A-BSBU-A-BSBU-AB-BSBU-AB-B
Model: SBU-A-BModel: SBU-AB-B




SBU-2A-BSBU-2A-BSBIU-2A2B-BSBIU-2A2B-B
Model: SBU-2A-BModel: SBIU-2A2B-B




SBU-S-BSBU-S-BSBIU-T2-BSBIU-T2-B
Model: SBU-S-BModel: SBIU-T2-B




SBIU-A1-BSBIU-A1-BSBIU-AB1-BSBIU-AB1-B
Model: SBIU-A1-BModel: SBIU-AB1-B




SBIU-KS2-BSBIU-KS2-BSBIU-KS2-B
Model: SBIU-KS2-B




SBIU-KS4-BSBIU-KS4-BSBIU-KS4-B
Model: SBIU-KS4-B




SBIU-L2-BSBIU-L2-BSBIU-L2-B
Model: SBIU-L2-B




SBIU-L3-BSBIU-L3-BSBIU-L3-B
Model: SBIU-L3-B




SBIU-L3B-BSBIU-L3B-BSBIU-L3B-B
Model: SBIU-L3B-B




SBIU-E-BSBIU-E-B
Model: SBIU-E-B




SBU-BzS-BSBU-BzS-B
Model: SBU-BzS-B




PLH-120PLH-120Pilot Light with Blank PlugPilot Light with Blank Plug
Model: PLH-120Pilot Light with Blank Plug



Push Button Station / Auxiliary Cable Armour

The auxiliary cable armour is a component for reinforcing the waterproof effect between the cable and the cable armour.

Since the auxiliary cable armour is an optional component, it should be additionally ordered.

  • It is recommended that the auxiliary cable armour should be mounted in the following conditions:
    1. When the pushbutton switch is installed at outdoor, or in an equivalent place.
    2. When you cannot select the cable armour whose inner diameter is at least 1.5mm (0.059") smaller than the connection cable outer diameter.

ModelApplicable cable outer diameterWeight
HAI-78 - 13mm (0.315" - 0.512")3g (0.106oz)
HAI-1213 - 17mm (0.512" - 0.669")4g (0.141oz)
HAI-1617 - 27.5mm (0.669" - 1.083")5g (0.176oz)




Auxiliary Cable Armour

Push Button Station / Hanging Bracket

  • For hanging push button station with a wire rope, etc. of 4mm (0.157") or more in the outside diameter, the S-shaped ring is available.
  • The material of the hanging bracket (S-shaped ring) is stainless steel. The wire rope, etc. up to 12mm (0.472") can be put.
Hanging Bracket
