คลิกดูรูปสินค้า 360 องศา

Click to see the product 360°

OIST SWITCH SBN 5	Description	RATE INSULATION,rate themal	opeating temperature
SBN-5	5pushbutton POLYCARBONATE	250V AC ,3A	-5 C to 40 C

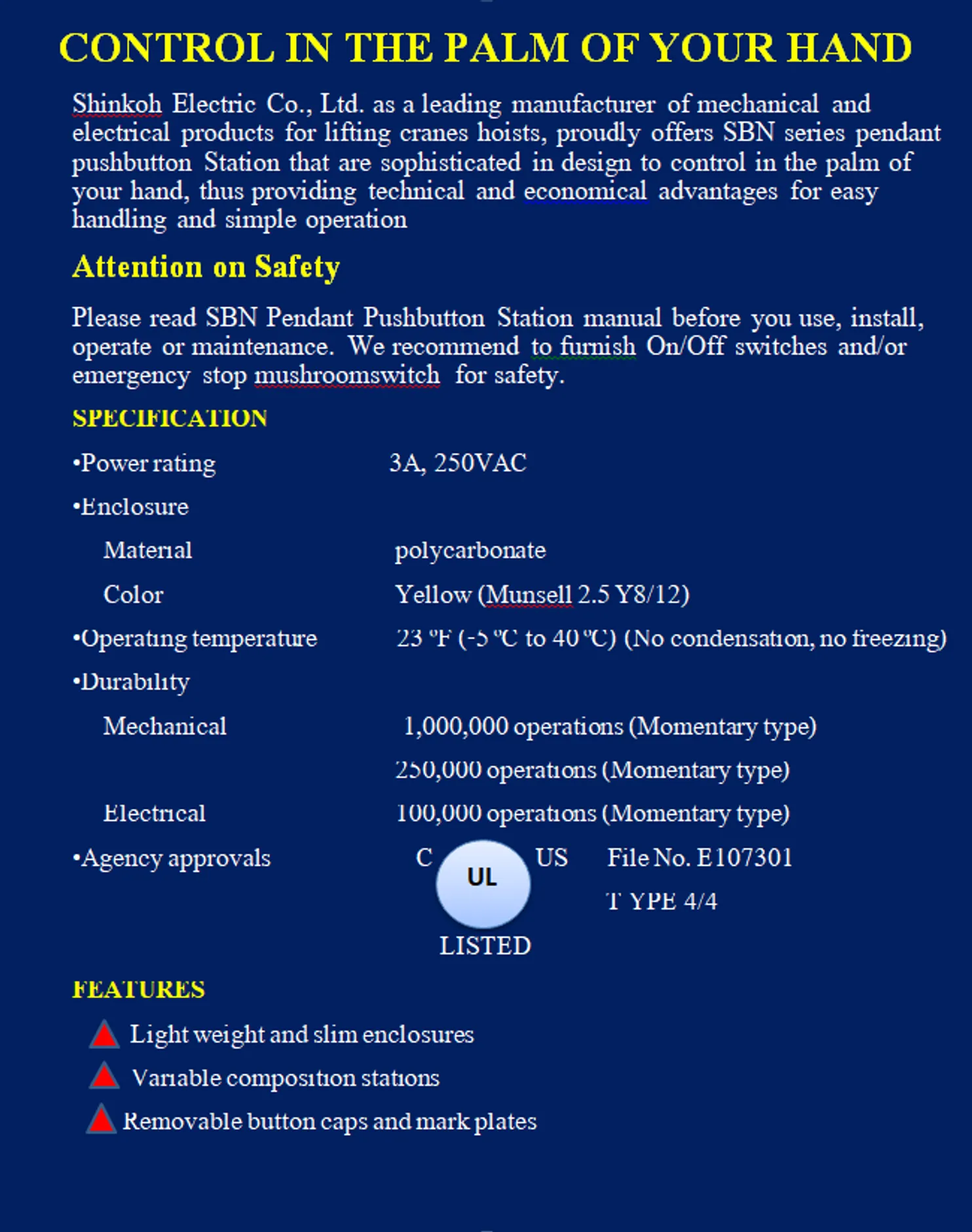

SHINKOH SBN PANDANT

Model	Description	Capacity
SBU-B-B	Momentary On/Off	3A, 250VAC
SBU-H2-B	Maintained On/Off
SBU-H3-B	Maintained On/Off (NO/NC)
SBU-A-B	Single Speed Switch
SBU-AB-B	Single Speed Switch (NO/NC per Button)
SBU-2A-B	Single Speed Switch (NO/NO per Button)
SBIU-2A2B-B	Single Speed Switch (NO+NO/NC+NC per Button)
SBU-S-B	Two Speed Switch
SBIU-T2-B	Three Speed Switch
SBIU-A1-B	Momentary Single Button
SBIU-AB1-B	Momentary Single Button (NO/NC)
SBIU-KS2-B	2-Position Key Switch
SBIU-KS4-B	4-Position Key Switch
SBIU-L2-B	2-Position Selector Switch
SBIU-L3-B	3-Position Selector Switch (NC in Center Position)
SBIU-L3B-B	3-Position Selector Switch (NO in Center Position)
SBIU-E-B	Mushroom Head Emergency Stop Device
SBU-BzS-B	Buzzer Switch
PLH-120R	Red Pilot Light	120VAC
PLH-120G	Green Pilot Light
PLH-120Y	Yellow (Orange) Pilot Light
PLH-120T	Transparency Pilot Light

Model: SBU-B-B

Model: SBU-H2-B				Model: SBU-H3-B

Model: SBU-A-B				Model: SBU-AB-B

Model: SBU-2A-B				Model: SBIU-2A2B-B

Model: SBU-S-B				Model: SBIU-T2-B

Model: SBIU-A1-B				Model: SBIU-AB1-B

	Model: SBIU-KS2-B

	Model: SBIU-KS4-B

	Model: SBIU-L2-B

	Model: SBIU-L3-B

	Model: SBIU-L3B-B

Model: SBIU-E-B

Model: SBU-BzS-B

Model: PLH-120				Pilot Light with Blank Plug

The auxiliary cable armour is a component for reinforcing the waterproof effect between the cable and the cable armour.

Since the auxiliary cable armour is an optional component, it should be additionally ordered.

• It is recommended that the auxiliary cable armour should be mounted in the following conditions:

  1. When the pushbutton switch is installed at outdoor, or in an equivalent place.
  2. When you cannot select the cable armour whose inner diameter is at least 1.5mm (0.059") smaller than the connection cable outer diameter.

• For hanging push button station with a wire rope, etc. of 4mm (0.157") or more in the outside diameter, the S-shaped ring is available.
• The material of the hanging bracket (S-shaped ring) is stainless steel. The wire rope, etc. up to 12mm (0.472") can be put.
